16-position dual-row receptacle on 2.54 mm pitch
No stock-holding claim here — confirm availability and current pricing at quote time.
The contact post length is 0.122" (3.10 mm), which suits standard 1.6 mm thick PCBs with through-hole plating.

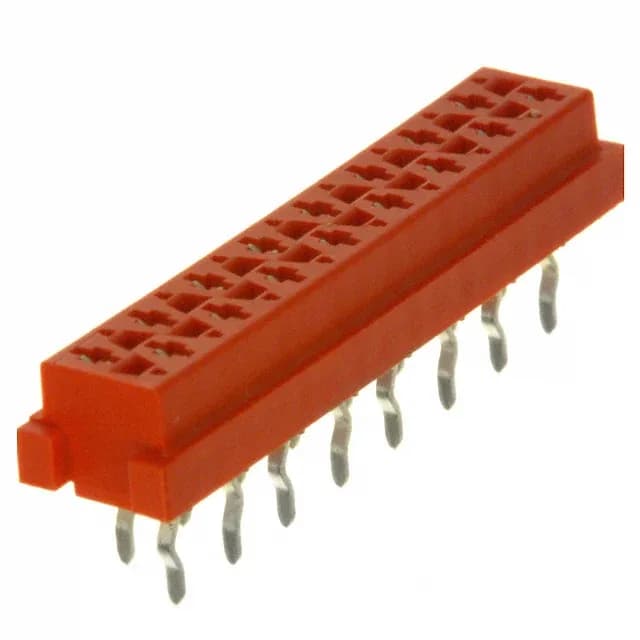

8-215079-6 TE Connectivity Micro-MaTch 16-Pin Receptacle
MPN8-215079-6
Active
TE Connectivity AMP Connectors Micro-MaTch series, 8-215079-6, 16-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole, tin-plated contacts, red PBT housing, rated 100 VDC, -40°C to 105°C, UL94 V-0.
$2.2000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the pitch of 8-215079-6?
The mating pitch is 0.100" (2.54 mm), with row spacing also 0.100" (2.54 mm). This is the standard 0.100-inch grid, so it mates with any 2.54 mm pitch pin header of matching position count.
Is 8-215079-6 RoHS compliant?
Yes, it is ROHS3 compliant per the manufacturer's listing.
