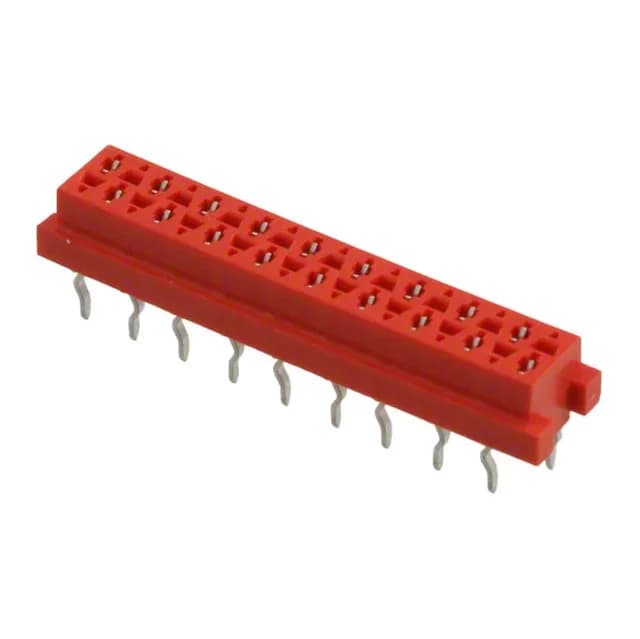

TE Connectivity AMP Connectors Micro-MaTch receptacle, 8-215079-8, 18 positions, 2-row, 0.100" (2.54mm) pitch, through-hole, tin-plated forked contacts, red PBT housing, rated 100VDC, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 8-215079-8 uses tin-on-tin contacts, while peer 1376775-2 uses gold-on-tin (8µin gold mating, tin post). Gold plating supports more mating cycles and resists corrosion better in harsh environments; tin is cost-effective for one-time or infrequent mate applications. If your BOM requires fewer circuits or SMT assembly, that part is a direct alternative within the same series.
The 8-215079-8 is an 18-position, dual-row receptacle with all positions loaded. Pinout follows the standard Micro-MaTch 2-row grid at 0.100" row spacing. The datasheet provides the exact footprint and mating interface dimensions.
Yes, 8-215079-8 is ROHS3 compliant per the manufacturer's listing.
