TE Connectivity AMP Connectors 8-215460-0 — Female Socket Headers

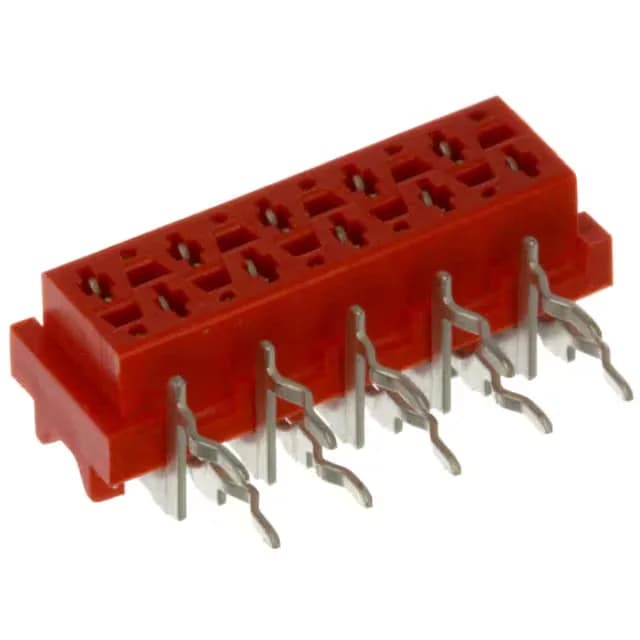

8-215460-0 TE Connectivity Micro-MaTch 10-Pin Receptacle

MPN8-215460-0
Active

TE Connectivity AMP Connectors Micro-MaTch series, 8-215460-0, female socket receptacle, 10 positions, dual-row, 0.100" (2.54 mm) pitch, tin-plated contacts, through-hole right-angle termination, UL94 V-0 housing.

$1.3987Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 8-215460-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

8-215460-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.228\" (5.80mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

8-215460-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

Active Production, Ready for BOM

The 8-215460-0: ROHS3 compliant per the manufacturer listing.

Board Fit and Routing at 0.100" Pitch

The receptacle mates with a matching Micro-MaTch pin header (push-pull fastening). The forked contact design accepts the header's flat pin.

Environmental and Material Ratings

Insulation height is 0.228" (5.80 mm) — the mated stack height depends on the header's mating pin length. Contact posts extend 0.122" (3.10 mm) below the housing for solder-through-hole assembly.

Frequently asked questions

What is the pinout of 8-215460-0?

It is a 10-position, dual-row receptacle with all positions loaded. The mating header must match this row spacing.

Is 8-215460-0 RoHS compliant?

Yes, it is listed as ROHS3 compliant by TE Connectivity.

What is the current rating for TE 8-215460-0?

The evidence does not list a specific current rating. The voltage rating is 100 VDC. For current capability, refer to the manufacturer's derating curve for the Micro-MaTch series with tin-plated contacts.
