TE Connectivity AMP Connectors 8-215460-2 — Pin Headers, Sockets & Housings

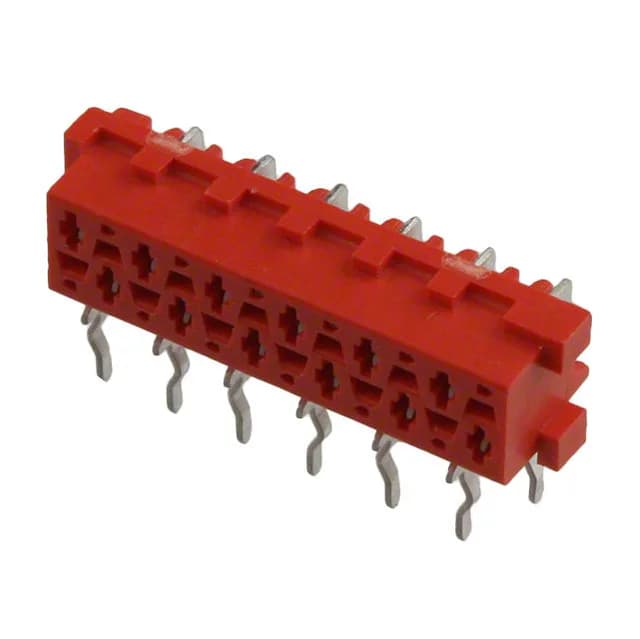

8-215460-2 TE Connectivity Micro-MaTch 12-Pin Receptacle

MPN8-215460-2
Active

TE Connectivity AMP Micro-MaTch receptacle, 12 circuits, 2.54mm pitch, right-angle through-hole with kinked solder pins, tin-on-tin contact finish, UL94 V-0 red PBT housing, -40°C to 105°C.

$2.2400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 8-215460-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

8-215460-2 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.228\" (5.80mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

8-215460-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

12-Position Right-Angle Receptacle for Board-to-Board or Cable Duty

The 8-215460-2: This is a 12-position, dual-row receptacle from TE's Micro-MaTch series, pitched at 2.54mm on both the row and mating spacing. The fork-style contact mates with the matching Micro-MaTch pin header.

Thermal and Mechanical Limits for the Build

The housing is glass-filled PBT rated UL94 V-0, so the connector passes the flame test for equipment inside an enclosure. The contact length after the post is 3.10mm (0.122 inches), which sets the minimum PCB thickness for a reliable solder fillet on the through-hole joint. The insulation height of 5.80mm (0.228 inches) gives clearance above the board for routing traces under the body.

Frequently asked questions

What is the mating connector for 8-215460-2?

The fork contact design is specific to Micro-MaTch, so a header from a different series will not fit.

Is 8-215460-2 compatible with Micro-MaTch headers?

Yes.
