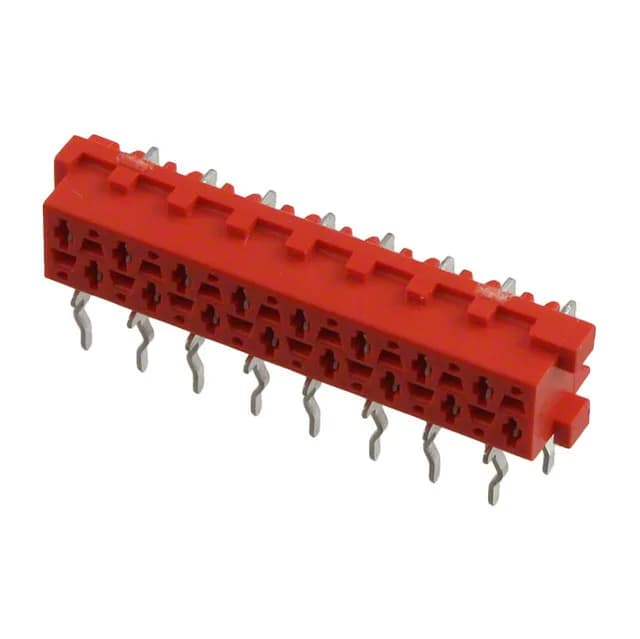

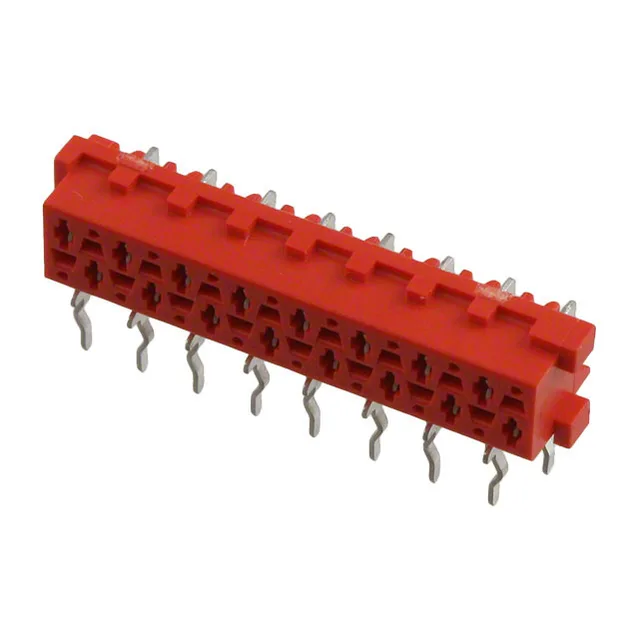

TE Connectivity AMP Connectors Micro-MaTch receptacle, 16 positions, 0.100" (2.54 mm) pitch, through-hole right-angle, tin-plated forked contacts, 100 VDC, -40°C to 105°C, UL94 V-0 red PBT housing.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Rated 100 VDC, which sets the maximum working voltage between adjacent contacts — sufficient for low-voltage automotive and industrial signal circuits.
The tape-and-reel packaging suits automated pick-and-place for high-volume assembly.
The mating pitch is 0.100" (2.54 mm), dual-row, with a matching row spacing of 0.100" (2.54 mm).
Yes — the connector style is listed as Board to Board or Cable, and the forked contact type accepts mating pin headers typical in wire-to-board harnesses.
8-215460-6 is a 16-position through-hole right-angle receptacle; 1-2823056-2 is a 12-position surface-mount receptacle. Both use 0.100" pitch and tin-plated forked contacts, but the peer has fewer circuits and an SMT footprint.
