TE Connectivity AMP Connectors 8-215464-2 — Pin Headers

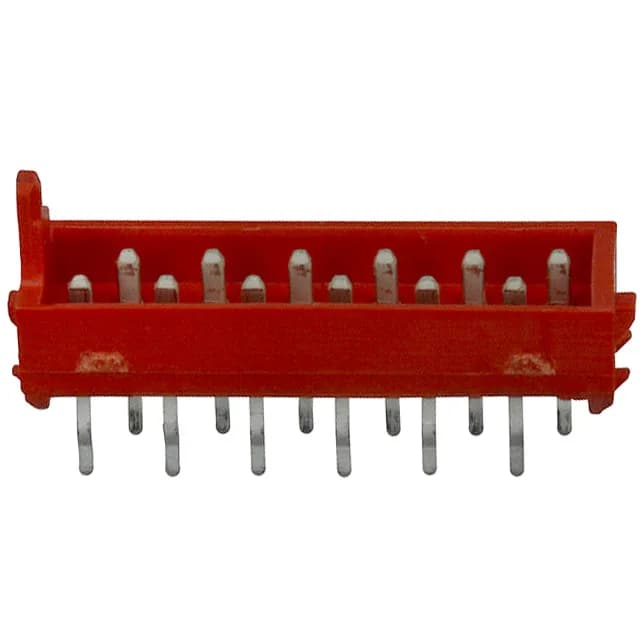

8-215464-2 TE Connectivity Micro-MaTch Header 12 Pos 2.54mm

MPN8-215464-2
Active

TE Connectivity AMP Connectors Micro-MaTch header, 8-215464-2, 12 positions, 2.54mm pitch, shrouded 4-wall, latch lock, 1.5A, 230V, tin finish, -40°C to 105°C, through hole, press-fit/solder termination.

$1.7000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 8-215464-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

8-215464-2 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.142\" (3.60mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

8-215464-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

The 8-215464-2: This is a 12-position, dual-row header from TE's Micro-MaTch series, built on the standard 0.100-inch (2.54mm) pitch. Rated at 1.5A per contact and 230V, it handles signal-level and low-power distribution inside equipment enclosures.

Termination and mating details

The header terminates through the board with a press-fit or solder tail — the 0.122-inch (3.10mm) post length suits standard 1.6mm PCBs. Mates with Micro-MaTch receptacles (same series) — the latch lock engages with a positive click. The red insulation color is a visual key for the series.

Frequently asked questions

What is the mating connector for 8-215464-2?

It mates with Micro-MaTch series receptacles (female housings with crimp terminals) that share the same 2.54mm pitch and latch lock feature. The mating half is a board-to-board or cable-mount receptacle from the same series.
