TE Connectivity AMP Connectors 8-2178711-6 — Pin Headers, Sockets & Housings

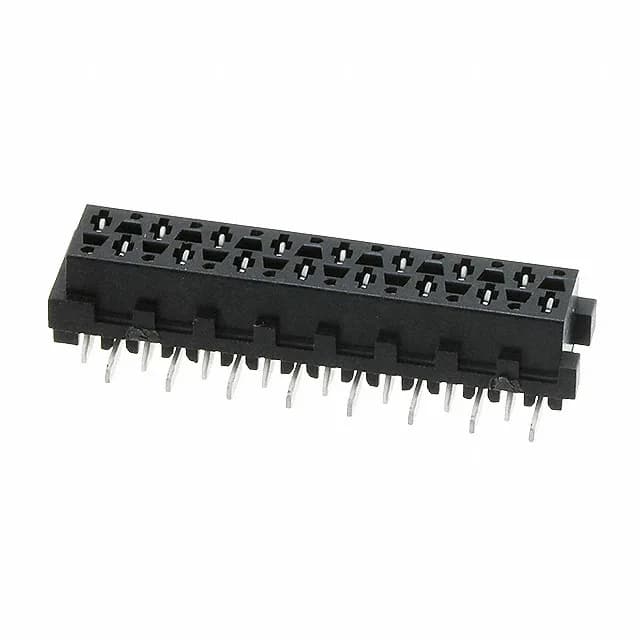

8-2178711-6 TE Micro-MaTch 16-Pin SMT Receptacle

MPN8-2178711-6
Obsolete

TE Connectivity AMP Connectors Micro-MaTch receptacle, 16 circuits, dual-row, 0.100" (2.54mm) pitch, surface-mount, tin-plated forked contacts, pick-and-place compatible, -30°C to 85°C, General Purpose / Telecommunications.

$2.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

8-2178711-6 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-30°C ~ 85°C
Contact materialBrass
Insulation colorBlack
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
StyleBoard to Board or Cable

All specifications

8-2178711-6 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsGeneral Purpose, Telecommunications
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating118.1µin (3.00µm)

Product details

Obsolete — Sourced to Order, No Successor

Availability is confirmed at quote time against an RFQ.

16 Circuits, Dual-Row, 0.100" Pitch — Board Fit

Surface-mount termination with pick-and-place features means the part is designed for automated reflow assembly — no through-hole staking or hand-soldering needed.

Tin-Plated Forked Contacts — Signal Duty

Tin is cost-effective for moderate-cycle applications — expect a few hundred mates before fretting becomes a concern. The forked contact geometry provides a wiping action during insertion.

Micro-MaTch Series — Mating Half

This receptacle mates with the Micro-MaTch series pin headers. The housing is glass-filled PA46 (Nylon 4/6), black, rated UL94 V-0 for flame resistance inside equipment enclosures.

Frequently asked questions

How can I order 8-2178711-6 or check availability?

This part is obsolete, but we can source it through independent supply channels.

What is the replacement for 8-2178711-6?

TE Connectivity has not published a direct successor for this part. A board spin or a cross-reference to another Micro-MaTch variant may be required — confirm the mating half and footprint before redesigning.

What is the pin pitch of 8-2178711-6?

The mating pitch is 0.100" (2.54mm), with the same row-to-row spacing of 0.100" (2.54mm). This is a standard dual-row footprint.

What is the mounting type of 8-2178711-6?

Surface-mount (SMT) with solder termination. The part is packaged on Tape & Reel and includes pick-and-place features for automated assembly.
