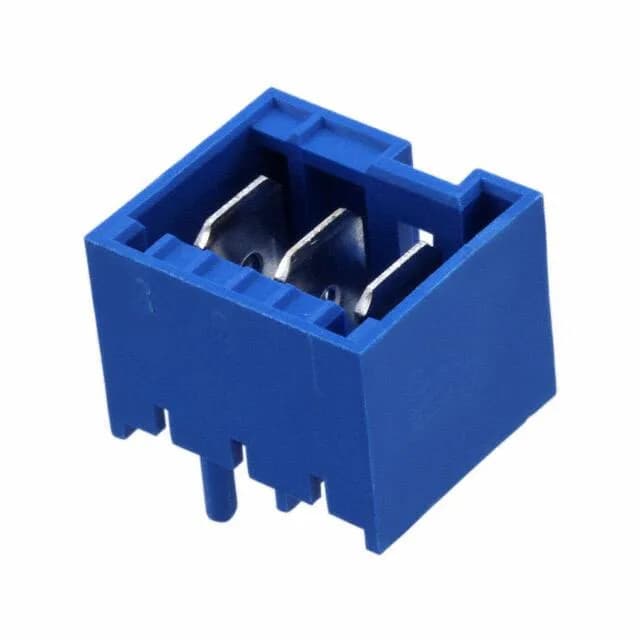

TE 8-2232001-3 Header, 3-Pos, 5mm Pitch, 20A, Silver
TE Connectivity 8-2232001-3, 3-position single-row shrouded header, 5.00 mm pitch, 20 A per circuit at 250VAC, silver-plated copper alloy contacts, through-hole solder termination, latch-holder fastening, UL94 V-0 polyamide (nylon) housing, board guide, glow wire compliant, -40°C to 120°C operating range, bulk pack.
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | 20A |
| Operating temperature | -40°C~120°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 3 |
| Contact finish - post | Silver |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Silver |
Frequently asked questions
What is the 8-2232001-3's connector style?
Board to Cable/Wire — it is a wire-to-board header designed to mount on the PCB and receive a cable-side connector or wire terminations through a mating receptacle housing.
What package does the 8-2232001-3 ship in?
Bulk. No reel or tray variant is listed in this MPN's record.
Does a pin-compatible alternative exist in this TE series?
No cross-reference or alternate MPN is listed in the available record for this product. The same series base (2232001) includes other position counts; confirm the circuit count match against the BOM before selecting a sibling.
