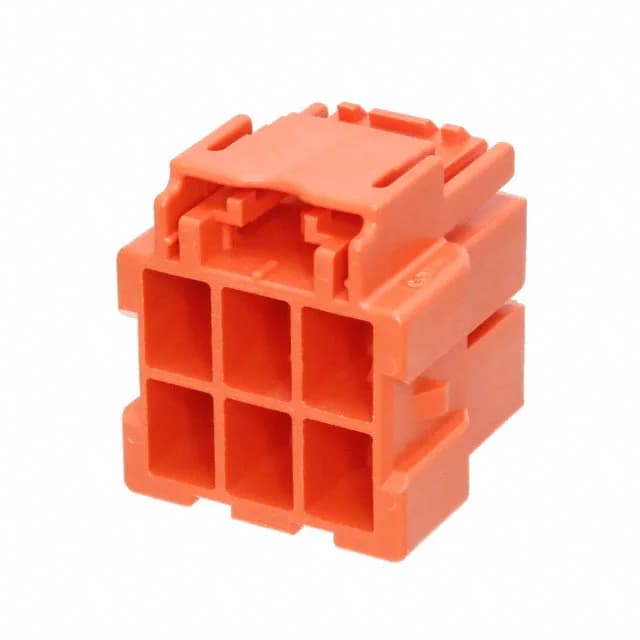

The 6.00 mm pitch provides generous creepage for power-level voltages, while the free-hanging in-line mounting suits harness assembly where the connector sits off the board. The orange color housing is a visual identifier for this specific variant, distinct from the natural or black housings common in the series.
The 2-row, 6-position layout at 6.00 mm pitch means the board-side header footprint requires 0.236" between pin centers across two rows spaced 0.319" (8.10 mm) apart.
The closest functional peer in the same class is the TE 1-1644055-3, also a 6-position, 2-row plug housing with Glow Wire compliance, but at a 6.35 mm pitch and in a natural color. The 8-2232266-3's 6.00 mm pitch is a tighter centerline, which may matter if the board-side header footprint is constrained by adjacent components or trace routing. Both use a latch holder fastening and free-hanging mounting — the choice between them comes down to the pitch the mating header requires, not a functional difference in current handling or lock strength.
