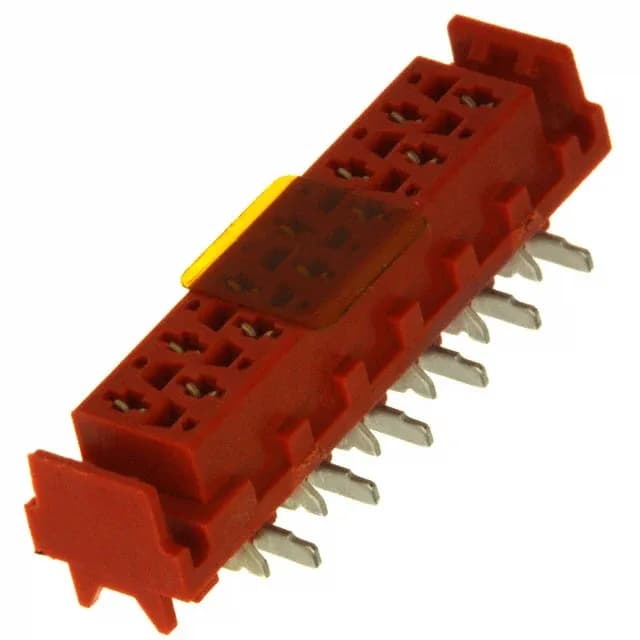

TE Connectivity AMP Connectors Micro-MaTch receptacle, 12 positions, 2 rows, 0.100" (2.54 mm) pitch, tin-plated forked contacts, surface mount, friction lock, red insulation, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 8-338069-2: The UL94 V-0 glass-filled nylon 4/6 housing provides flame resistance for equipment inside an enclosure.
The closest functional sibling is 1-2823056-2 — same 12 positions, same 0.100-inch pitch, same tin-plated forked contacts, same surface-mount termination. The main difference is insulation color: red on 8-338069-2, black on 1-2823056-2. Both are active and RoHS compliant.
Yes, 8-338069-2 is RoHS compliant per the manufacturer's listing.
Yes, it includes a friction lock to secure the mating connection against vibration.
The closest functional second-source is TE part 1-2823056-2 — same 12 positions, same 0.100-inch pitch, same tin-plated forked contacts, same surface-mount termination. The only difference is insulation color: red on 8-338069-2, black on 1-2823056-2.
The mating pitch is 0.100 inches (2.54 mm), with the same row spacing.
