TE Connectivity AMP Connectors 8-338069-4 — Female Socket Headers

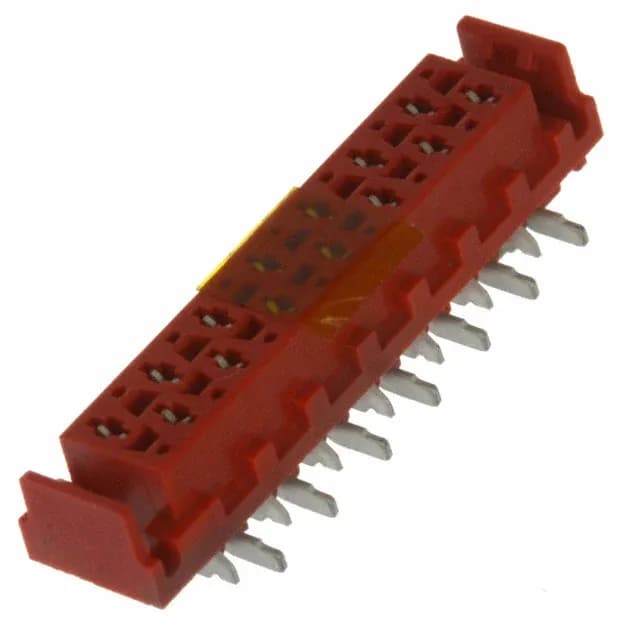

8-338069-4 TE Connectivity Micro-MaTch 14-Pin 2.54mm SMD

MPN8-338069-4
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 14 positions, 0.100" (2.54mm) pitch, dual-row, tin-plated forked contacts, surface-mount, friction lock, red PA46 housing, -40°C to 105°C, UL94 V-0.

$2.4942Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

8-338069-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeFriction Lock
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

8-338069-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

The 8-338069-4: The 14 circuits are fully loaded, so every pin position is active.

Surface-mount termination with pick-and-place capability

The connector is surface-mount with solder termination, and it includes pick-and-place features for automated assembly.

Peer alternatives for comparison

If your design needs fewer circuits, that part is a drop-in candidate. For higher cycle life, consider 1376775-2 (5-position) or 1376775-3 (3-position) — both use gold-plated contacts and a different housing material (thermoplastic, polyester, glass filled), but they are not pin-compatible with the 14-position layout.

Frequently asked questions

What is the compatible mating connector for 8-338069-4?

The 8-338069-4 is a receptacle from the Micro-MaTch series. The friction lock is on the receptacle side, so the header must have the corresponding locking ramp.
