What this 18-pin receptacle fits
The 8-338069-8: This is an 18-position dual-row receptacle from TE's Micro-MaTch series, designed for board-to-board or cable-to-board connections on a 0.100-inch (2.54 mm) pitch.

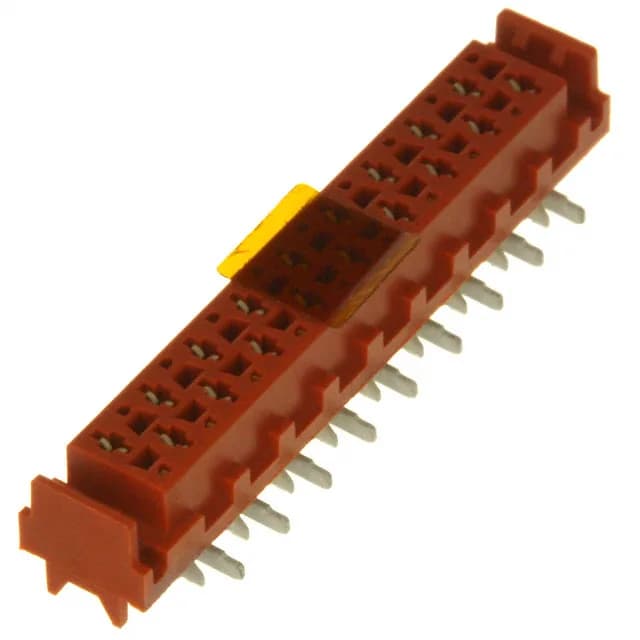

8-338069-8 TE Connectivity Micro-MaTch 18-Pin Receptacle
MPN8-338069-8
Active
TE Connectivity AMP Connectors Micro-MaTch, 18-position dual-row receptacle, 0.100" (2.54 mm) pitch, tin-plated forked contacts, friction lock, surface-mount solder termination, red PA46 housing, ROHS3 compliant, active production.
$3.1902Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Where can I buy 8-338069-8 and what is the lead time?
We source 8-338069-8 through independent distribution channels.
Is 8-338069-8 RoHS compliant?
Yes, it is listed as ROHS3 compliant.
What is the pinout of 8-338069-8?
Pin 1 is typically marked on the housing; the forked contacts mate with standard 0.025-inch square pins.
Does 8-338069-8 have a datasheet with a 3D model?
The base product number is 338069. The full datasheet and any available 3D models are published by TE Connectivity under that base number.
