TE Connectivity AMP Connectors 8-338728-0 — Pin Headers

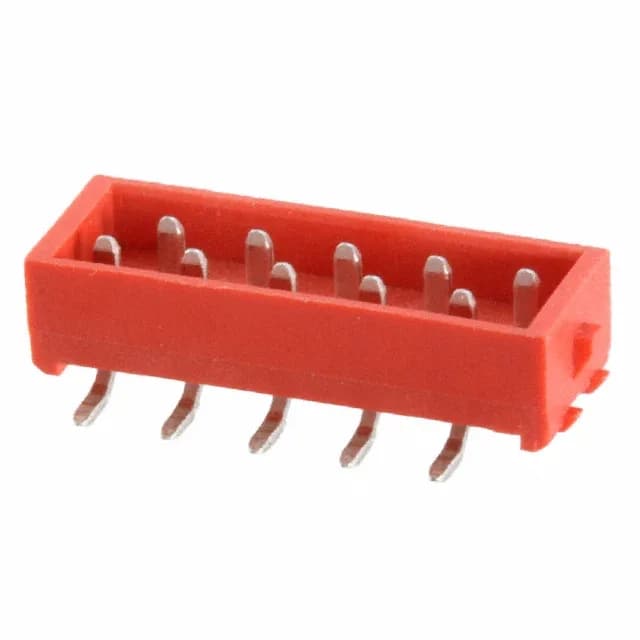

8-338728-0 TE Connectivity Micro-MaTch Header SMD 10POS

MPN8-338728-0
Active

TE Connectivity AMP Connectors Micro-MaTch header, 8-338728-0, 10-position dual-row SMD, 2.54 mm pitch, shrouded 4-wall, latch lock, tin-plated contacts rated 1.5 A, UL94 V-0 red PA46 housing, -40°C to 105°C.

$2.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

8-338728-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled

All specifications

8-338728-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions10
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

The 2.54 mm pitch sets the PCB footprint and the per-contact current ceiling — at 1.5 A the temperature rise stays within the PA46 housing limit. The latch lock fastening type secures the mating half without additional hardware, making it suitable for assemblies that see moderate vibration.

Board-fit and footprint details

Surface-mount termination with pick-and-place compatible packaging (Tape & Reel or Cut Tape) suits automated assembly lines. The brass pins with rectangular cross-section carry the signal; the tin post finish solders reliably to standard PCB pads.

Frequently asked questions

What is the mating connector for 8-338728-0?

This header mates with a Micro-MaTch receptacle (female) of the same 10-position, 2.54 mm pitch configuration. The latch lock on the header engages with the corresponding latch on the receptacle housing. Confirm the exact receptacle part number from the Micro-MaTch series for your wire-to-board or cable assembly.
