TE Connectivity AMP Connectors 8-34176-1
MPN8-34176-1
Active

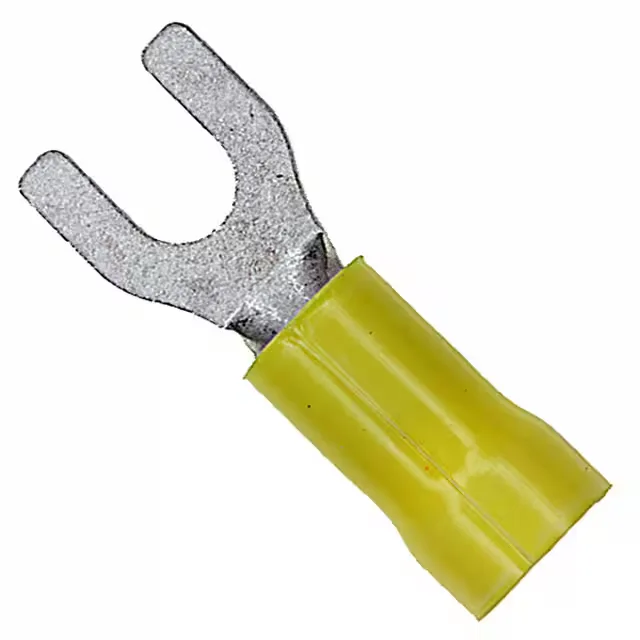

CONN SPADE TERM 10-12AWG #10 YEL
$0.74Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.406\" (10.31mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Length - overall | 1.095\" (27.81mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
| Length - termination | 0.591\" (15.01mm) |
| Tongue inside opening | 0.197\" (5.00mm) |
| Length - ring center to termination | 0.296\" (7.52mm) |
