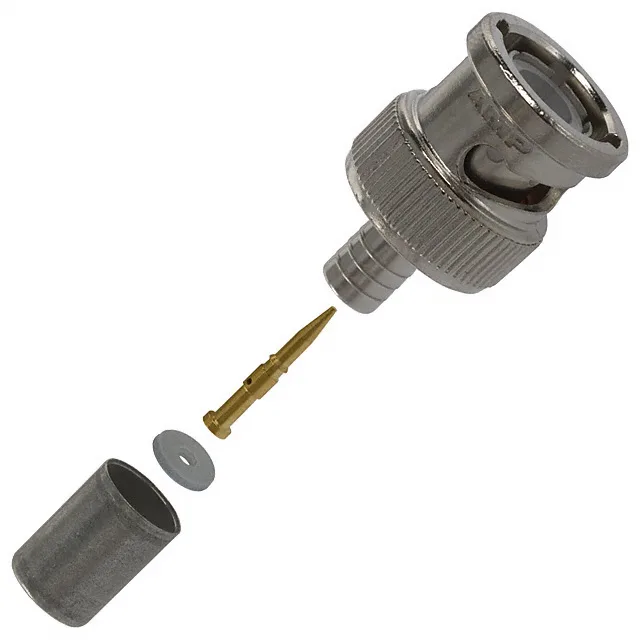

TE Connectivity BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, crimp termination, bayonet lock, free-hanging, includes contact, ferrule, spacer.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-59, 59A, 59B, 62, 62A, 62B |
| Operating temperature | -55°C ~ 85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polyethylene (PE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Spacer |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Silver |
The 8-5227079-1: This plug is designed for RG-59, 59A, 59B, 62, 62A, and 62B cable groups — the common 75 Ohm video coax types that also work well in 50 Ohm systems at these frequencies.
The 0.2 dB insertion loss at the connector interface is typical for a BNC at these frequencies; the loss budget in your cable run should account for it.
The 8-5227079-1 is designed for RG-59, 59A, 59B, 62, 62A, and 62B cable groups. Both the center conductor and shield are crimp-terminated.
