TE Connectivity AMP Connectors 8-53125-1
MPN8-53125-1
Active

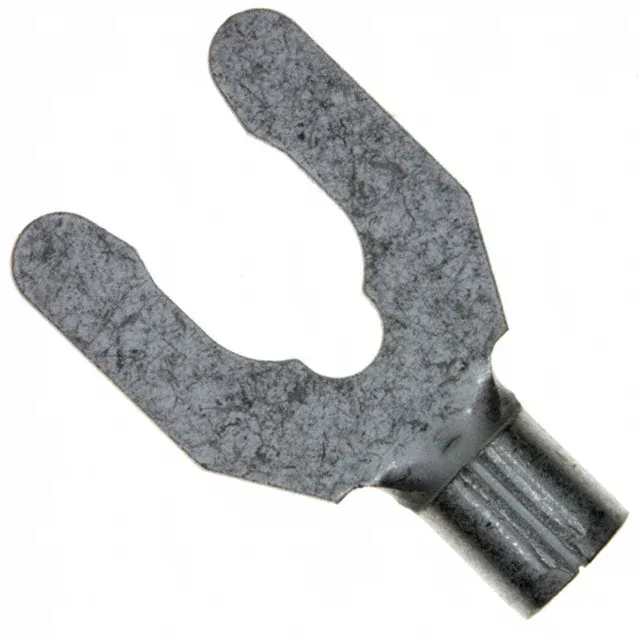

CONN SPADE TERM 14-16AWG #10
$0.67Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 14-16 AWG |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.406\" (10.31mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.685\" (17.40mm) |
| Length - termination | 0.181\" (4.60mm) |
| Tongue inside opening | 0.190\" (4.83mm) |
| Length - ring center to termination | 0.281\" (7.14mm) |
