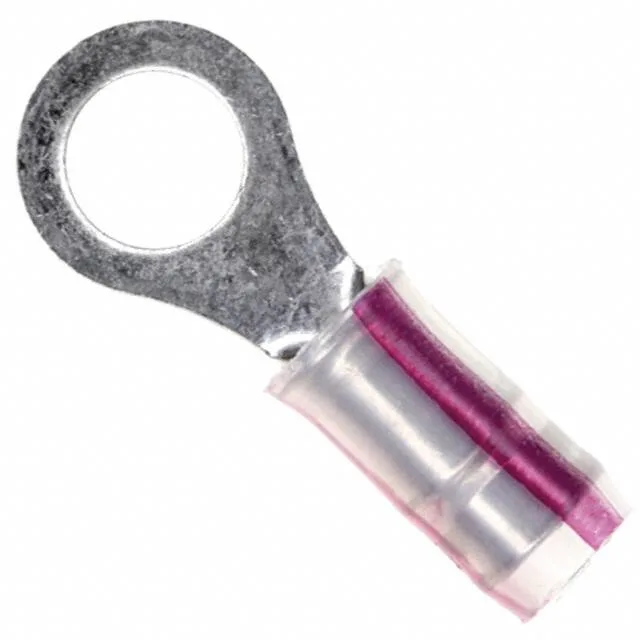

TE Connectivity AMP Connectors 8-53409-1
MPN8-53409-1
Active
CONN RING CIRC 16-22AWG #10
$1.32Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Natural, Red Stripe |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyvinylidene Fluoride (PVDF) |
| Package | Bulk |
| Features | Radiation Resistant, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin-Lead |
| Length - overall | 0.844\" (21.44mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
