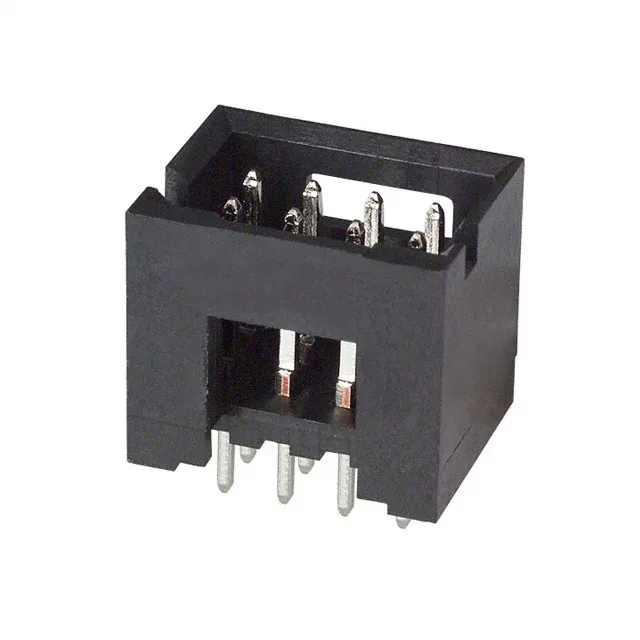

TE Connectivity AMP Connectors AMPMODU Mod II header, 8 positions, 0.100" (2.54 mm) pitch, shrouded 4-wall, through-hole, tin-plated male pins, rated 3 A per contact, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 100.0 µinch (2.54 µm) tin thickness on the mating area gives a solid oxide-break wipe on first mate; tin is a cost-effective choice for applications that see fewer than 25 mating cycles over the product life.
Through-hole solder posts 0.125" (3.18 mm) long – standard for wave-solder assembly.
Yes – it has a 4-wall shroud that surrounds the male pins, protecting them from damage and guiding the mating receptacle into position.
