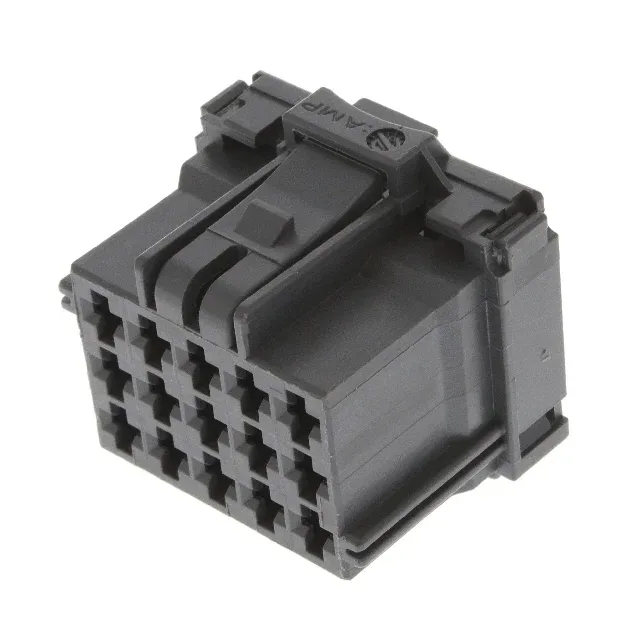

TE Connectivity MCP series receptacle housing, 8-968973-2, 15 positions, 3 rows, 5.00mm pitch, gray PBT, latch lock, free hanging, crimp termination.
| Parameter | Value |
|---|---|
| Series | MCP |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -30°C ~ 100°C |
| Color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Row spacing | 0.217\" (5.51mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 15 |
The gray glass-filled PBT housing carries a -30°C to 100°C operating range, suited for underhood automotive, industrial control cabinets, and power distribution assemblies where vibration resistance and a positive lock are required.
The crimp termination accepts the TE MCP series female socket contacts.
The mating half is a TE MCP series male pin header with the same 5.00 mm pitch and 3-row, 15-position configuration. The header uses the matching latch lock ramp to engage the housing's latch lock.
