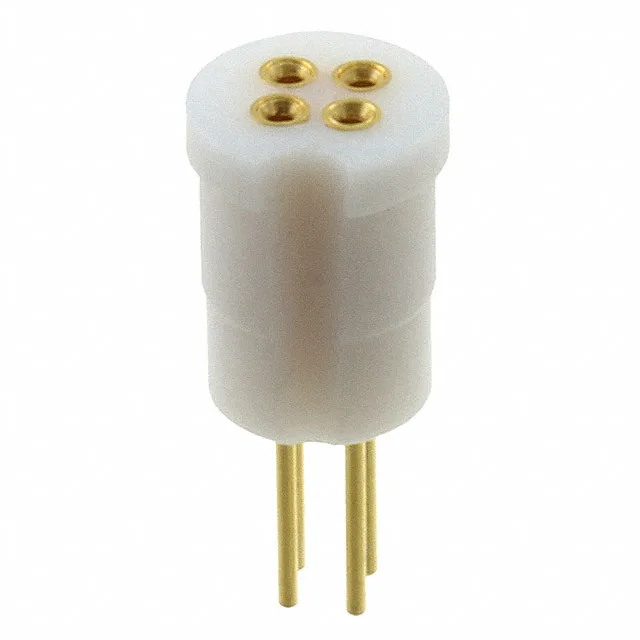

TE Connectivity AMP Connectors 8060 series transistor socket, order code 8060-1G12, 4 positions round (TO-5), gold-plated beryllium copper mating contacts, through-hole solder termination, closed frame fluoropolymer housing.
| Parameter | Value |
|---|---|
| Type | Transistor, TO-5 |
| Series | 8060 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Fluoropolymer (FP) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Number of positions or pins | 4 (Round) |
The 8060-1G12 is a 4-position round transistor socket in the TE Connectivity 8060 series, configured for TO-5 package devices. Mating contacts are gold-plated beryllium copper; the closed-frame housing is fluoropolymer.
The 8060-1G12 is listed as Obsolete by TE Connectivity AMP Connectors.
