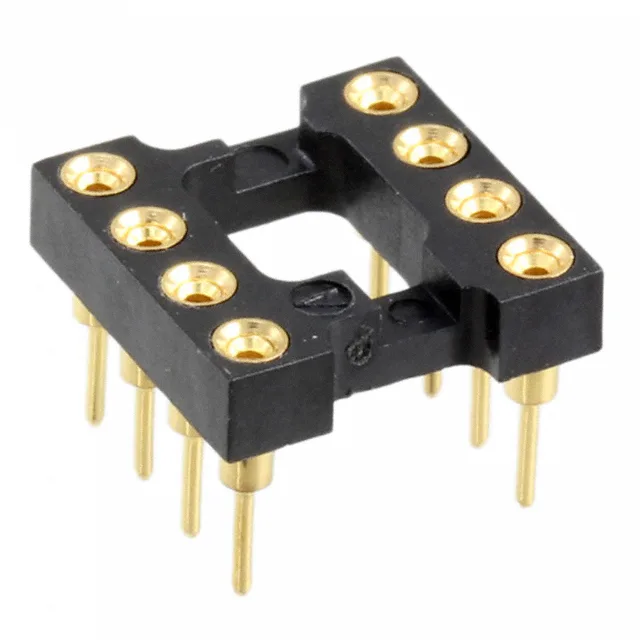

DIP socket, 0.3" (7.62mm) row spacing, order code 808-AG10D, 8 positions (2 x 4), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, open-frame polyester housing.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 5.00µin (0.127µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 8 (2 x 4) |
The 808-AG10D is the 8-circuit member of the 800-series DIP socket line, arranged 2 x 4 on 0.100" (2.54mm) pitch with 0.3" (7.62mm) row spacing. Gold-plated mating contacts rated 3 A, through-hole solder termination, open-frame polyester housing rated UL94 V-0.
Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ.
A board spin is required for any functional replacement.
