DIP socket, 8 positions, 0.100" pitch
The 808-AG11D-ES: Gold-plated mating contacts rated 3 A, through-hole solder termination, and an open-frame polyester housing with UL94 V-0 flammability rating.

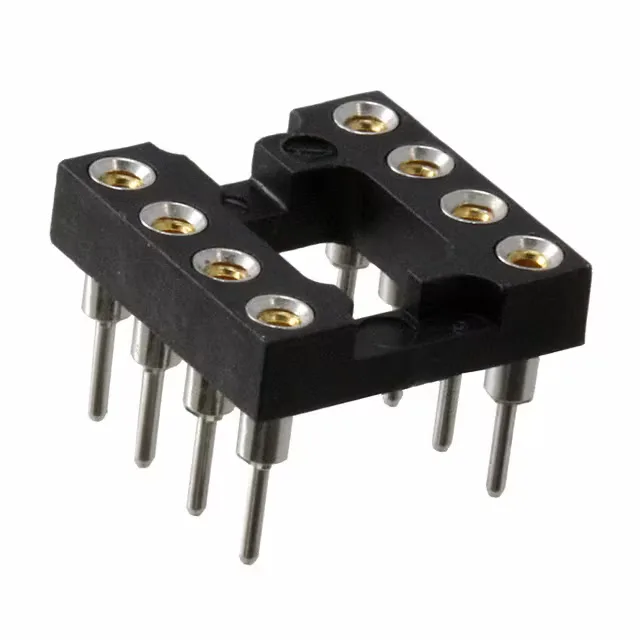

808-AG11D-ES TE Connectivity AMP DIP Socket, 8 Pos, Obsolete
MPN808-AG11D-ES
Obsolete
TE Connectivity AMP 800 series DIP socket, order code 808-AG11D-ES, 8 positions (2 x 4), 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, open-frame polyester housing, tube package.
$1.1800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting type | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyester |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 8 (2 x 4) |
Product details
Frequently asked questions
What is the 808-AG11D-ES's listed type?
The 808-AG11D-ES is a DIP socket with 0.3" (7.62 mm) row spacing, 8 positions in a 2 x 4 grid.
What compliance documentation does TE Connectivity AMP provide for the 808-AG11D-ES?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
