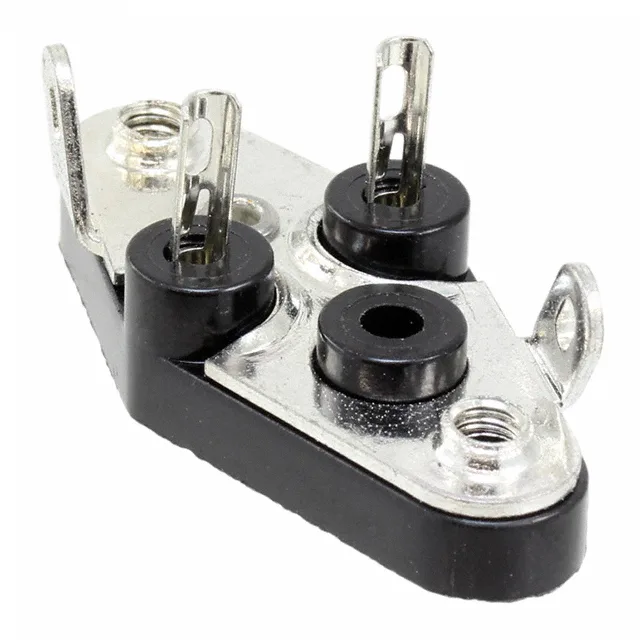

TE Connectivity AMP Connectors 8080 series transistor socket, order code 8080-1G1, TO-3 type, 4 positions round grid, solder termination, through hole, tin-lead mating and post contacts, beryllium copper contact material, closed frame housing.
| Parameter | Value |
|---|---|
| Type | Transistor, TO-3 |
| Series | 8080 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Fluoropolymer (FP) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Number of positions or pins | 4 (Round) |
The 8080-1G1 is a 4-position round-grid transistor socket from TE Connectivity AMP Connectors, designed for TO-3 case outline devices.
The 8080-1G1 is listed as Obsolete by TE Connectivity AMP Connectors. No official successor or pin-compatible alternative is recorded in this series. Availability is confirmed at RFQ through independent surplus channels.
