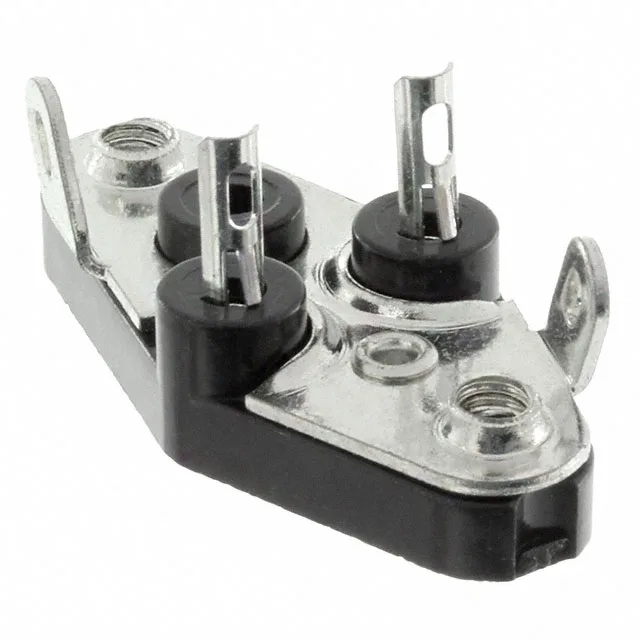

TE Connectivity AMP Connectors 8080 series Type Transistor, TO-3 socket, order code 8080-1G15, 3 positions, oval grid, solder termination, chassis mount, tin-lead mating and post contacts, fluoropolymer housing.
| Parameter | Value |
|---|---|
| Type | Transistor, TO-3 |
| Series | 8080 |
| Mounting | Chassis Mount |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Fluoropolymer (FP) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
| Number of positions or pins | 3 (Oval) |
The 8080-1G15 is the 3-position TO-3 socket in TE Connectivity's 8080 series, arranged on an oval grid for chassis-mount transistor installations.
TE Connectivity AMP Connectors lists the 8080-1G15 as Obsolete.
The 8080-1G15 is listed as Type Transistor, TO-3 — a socket designed for TO-3 package transistors with an oval 3-pin grid.
The tin-lead contact finish may affect RoHS exemption applicability.
