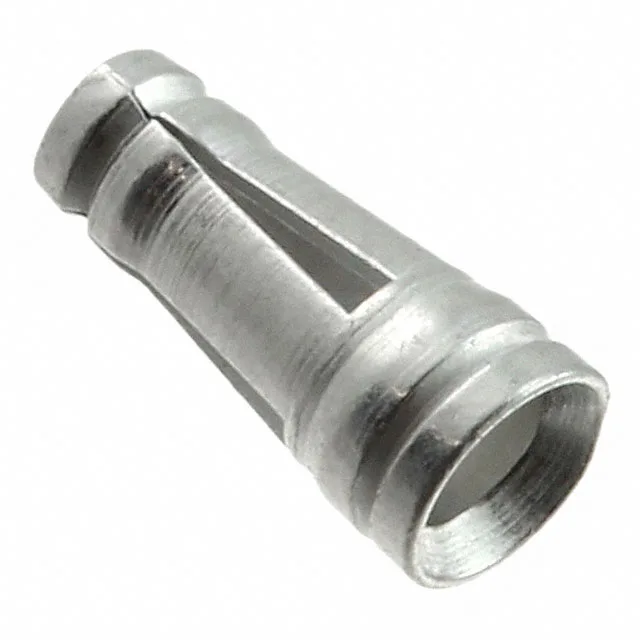

TE Connectivity AMP Connectors 8134-HC-8P3-LF
MPN8134-HC-8P3-LF
Active
$0.8100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HOLTITE |
| Tail type | No Tail |
| Mounting hole diameter | 0.058\" (1.47mm) |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit |
| Contact finish | Tin |
| Board thickness | 0.030\" (0.76mm) |
| Length - overall | 0.136\" (3.45mm) |
| Pin hole diameter | 0.042\" (1.07mm) |
| Accepts pin diameter | 0.025\" ~ 0.035\" (0.64mm ~ 0.89mm) |
| Accepts square pin size | 0.025\" (0.64mm) |
| Contact finish thickness | 80.0µin (2.03µm) |
