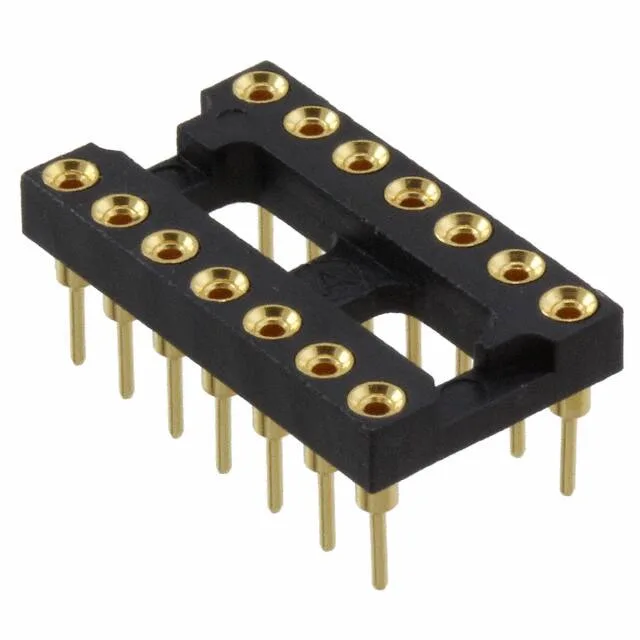

TE Connectivity AMP Connectors Series 800 DIP socket, order code 814-AG10D-ES, 14 positions (2 x 7), 0.100" (2.54 mm) pitch, 3 A, gold-plated beryllium copper mating contacts, through-hole solder termination, open-frame polyester housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 14 (2 x 7) |
The 814-AG10D-ES is the 14-circuit member of TE Connectivity's Series 800 DIP socket line, arranged in a 2 x 7 grid with 0.300" (7.62 mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A per contact, housed in an open-frame UL94 V-0 polyester body with through-hole solder termination.
The 814-AG10D-ES is classified Obsolete by TE Connectivity AMP Connectors. Lead time and lot specifics are quoted per inquiry.
