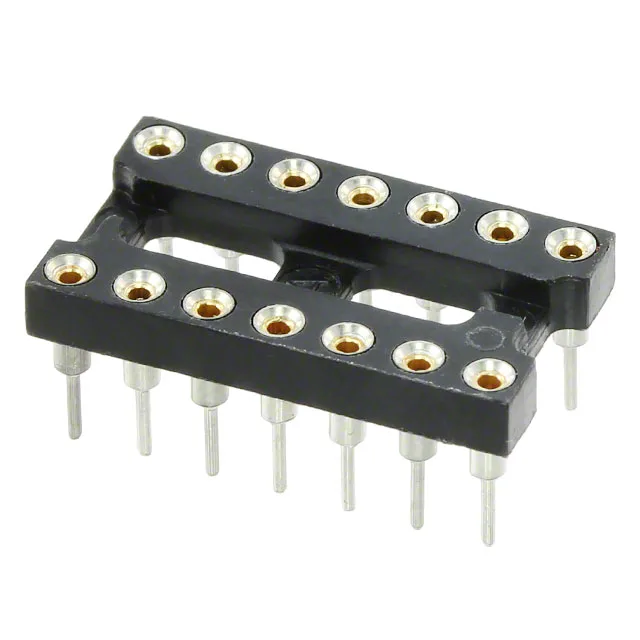

TE Connectivity AMP Connectors 800 series DIP header, order code 814-AG11D-ESL-LF, 14 positions (2 x 7), 0.100" (2.54mm) pitch, gold mating contacts, through-hole solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 14 (2 x 7) |
The 814-AG11D-ESL-LF: Gold flash plating on the mating contacts and through-hole solder termination suit it for moderate-cycle applications where corrosion resistance matters.
No official successor or pin-compatible alternative is recorded for this 14-position, 0.100" pitch DIP header.
Termination is solder only.
