0.100" pitch, 16 positions, open frame

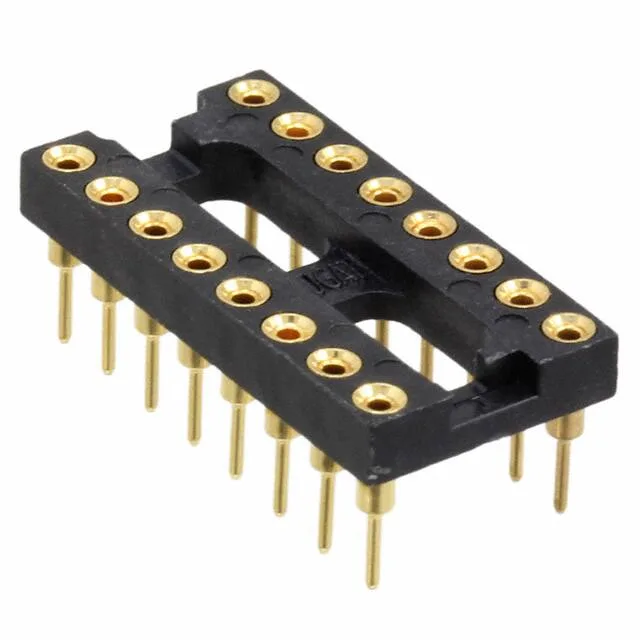

The 816-AG10D-ES is the 16-position dual-row member of TE Connectivity's 800 series DIP header family, arranged in a 2 x 8 grid on 0.100" (2.54mm) mating and post pitch with 0.300" (7.62mm) row spacing.
816-AG10D-ES TE Connectivity 16-Pin DIP Header, Obsolete
MPN816-AG10D-ES
Obsolete
TE Connectivity AMP Connectors 800 series DIP header, order code 816-AG10D-ES, 16 positions (2 x 8), 0.100" (2.54mm) pitch, 3 A, gold-plated beryllium copper mating contacts, through-hole solder termination, open-frame polyester housing.
$5.6700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting type | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 16 (2 x 8) |
