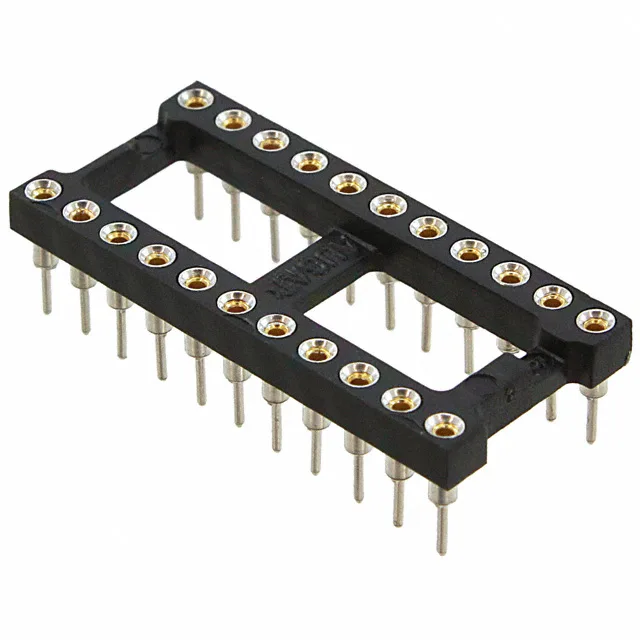

TE Connectivity AMP Connectors 822-AG11D-ESL-LF, Series 800, 22-position (2 x 11) DIP socket, 0.100" (2.54 mm) pitch, 0.4" (10.16 mm) row spacing, through-hole solder termination, open-frame, gold flash on mating and post contacts, PCT/Polyester housing UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.4\" (10.16mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C~105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 22 (2 x 11) |
