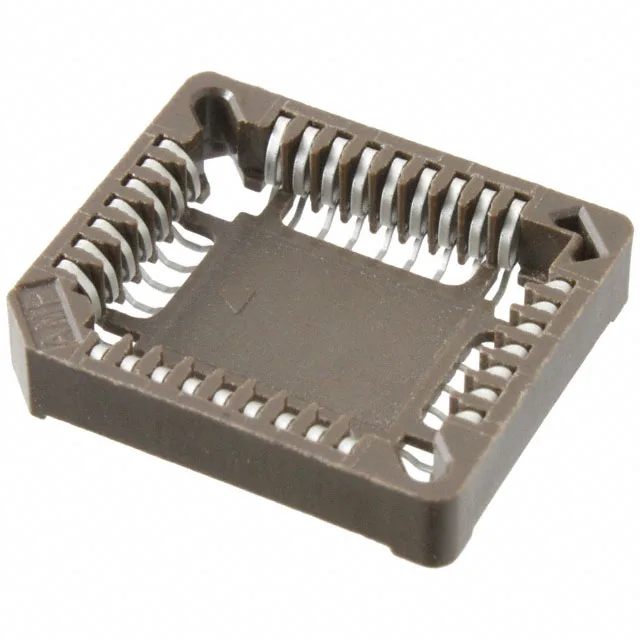

TE Connectivity AMP Connectors PLCC socket, order code 822475-2, 32 positions (2 x 7, 2 x 9), 0.050" (1.27mm) pitch, tin-plated mating and post contacts, closed frame, surface mount, solder termination, Tape & Reel packaging.
822475-2 TE Connectivity PLCC Socket, 32-Pos, 1.27mm Pitch
MPN822475-2
Active
TE Connectivity AMP Connectors PLCC socket, order code 822475-2, 32 positions (2 x 7, 2 x 9), 0.050" (1.27mm) pitch, tin-plated mating and post contacts, closed frame, surface mount, solder termination, Tape & Reel packaging.
$3.3100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Surface Mount |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Features | Closed Frame |
| Package | Tape & Reel (TR) |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
| Number of positions or pins | 32 (2 x 7, 2 x 9) |
Product details
Frequently asked questions
What is the 822475-2's listed type and features?
The 822475-2 is a PLCC socket with a Closed Frame feature, per the manufacturer's specifications.
