24-pin DIP header, 0.100" pitch
The 824-AG11D: Gold-plated mating contacts rated 3 A per circuit, with a contact resistance of 10 mOhm.
Production status — obsolete
TE Connectivity AMP Connectors lists the 824-AG11D as Obsolete.

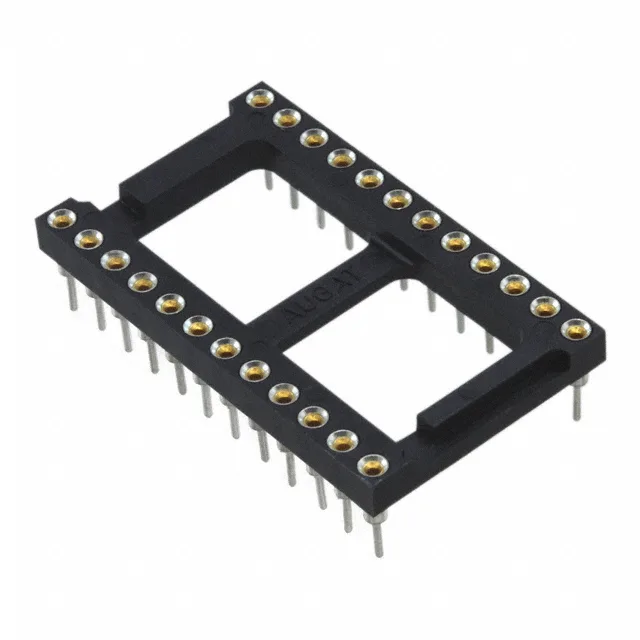

TE 824-AG11D DIP Header, 24 Pos, 0.100", Obsolete
MPN824-AG11D
Obsolete
TE Connectivity AMP Connectors 800 series DIP header, order code 824-AG11D, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, open frame.
$3.7600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 24 (2 x 12) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 824-AG11D?
No pin-compatible successor from TE Connectivity AMP Connectors is documented. Any functional replacement would require a board spin — the pitch, pin count, and footprint must be verified against the BOM.
What compliance documentation does TE Connectivity AMP Connectors provide for 824-AG11D?
The housing material is rated UL94 V-0.
