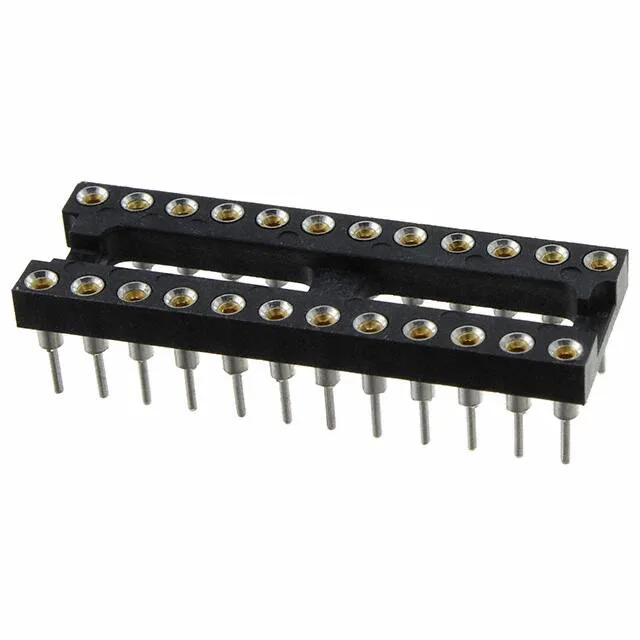

824-AG31D - TE Connectivity AMP Connectors
MPN824-AG31D
Obsolete
$1.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C~105°C |
| Housing material | Polyester |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 24 (2 x 12) |
