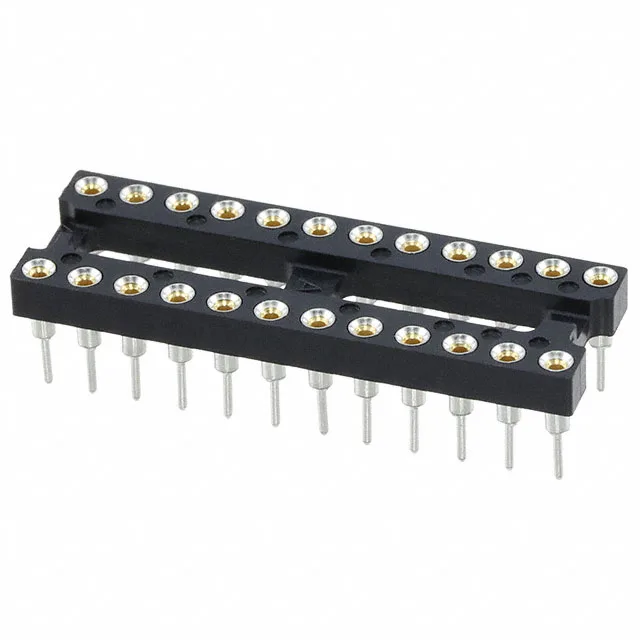

TE Connectivity AMP 800 series DIP header, order code 824-AG31D-ESL-LF, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 24 (2 x 12) |
The 824-AG31D-ESL-LF: Gold flash on both mating and post contacts; housing is PCT/polyester rated UL94 V-0. Operating temperature range is -55°C to 105°C.
Available through independent surplus and aftermarket channels.
