Board Footprint and Routing Fit
Unshrouded Design and Mating Considerations
This is an unshrouded header (no wall around the pins), which means it mates with standard AMPMODU Mod II female socket housings but offers no keying or polarization.

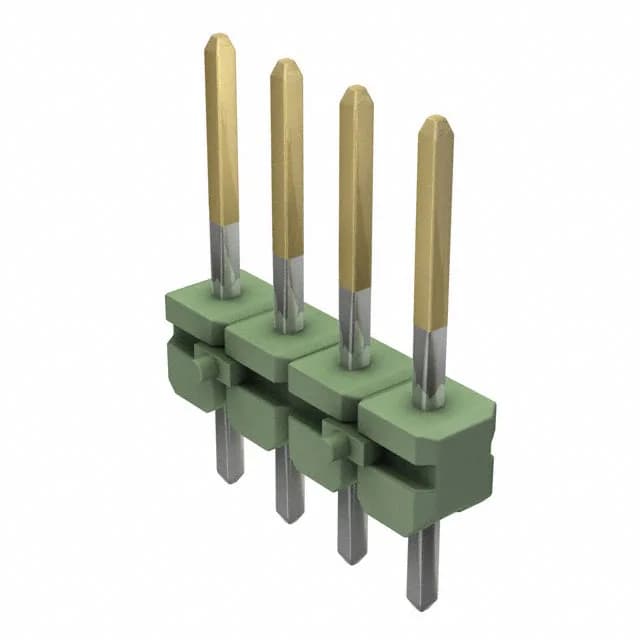

825433-4 TE Connectivity AMP Connectors 4-Pin Header 2.54mm
MPN825433-4
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 4 Positions, 0.100" (2.54 mm) Pitch, Unshrouded, Through Hole, Solder Termination, Gold Flash Mating, Tin Post, UL94 V-0, Green Insulation, Bulk.
$0.8600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | Flash |
Product details
Frequently asked questions
What is the pitch of 825433-4?
The pitch is 0.100" (2.54 mm).
Is 825433-4 a shrouded header?
It mates with standard AMPMODU Mod II female socket housings but does not provide keying or polarization.
Is 825433-4 RoHS compliant?
Yes, it is ROHS3 compliant.
