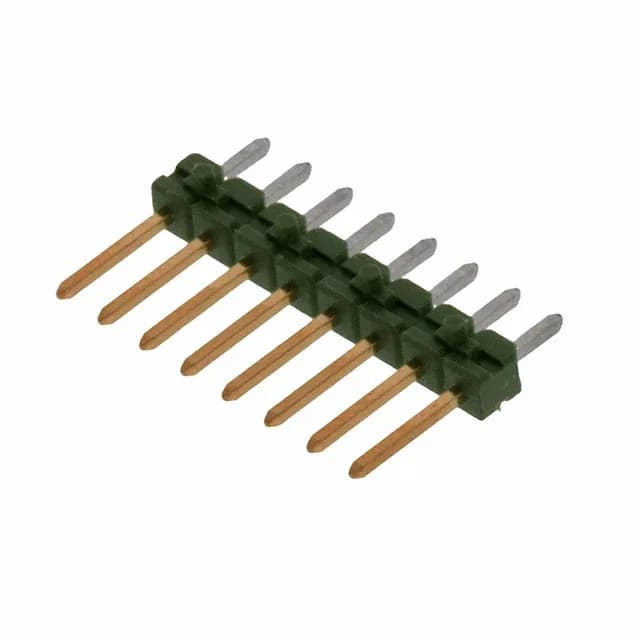

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 8 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Solder, Gold Flash Mating, Tin Post, UL94 V-0, Green Insulation
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | Flash |
The UL94 V-0 PBT housing meets the flame-rating requirement for equipment inside a cabinet.
Overall contact length is 0.500" (12.70 mm), with a 0.126" (3.20 mm) post length for the through-hole solder joint. The push-pull fastening is simple — no latch, so it's best for applications where the connector won't see vibration or accidental tugging. The green insulation colour is a visual aid for quick identification on the board.
