TE Connectivity AMP Connectors 825457-3 — Pin Headers

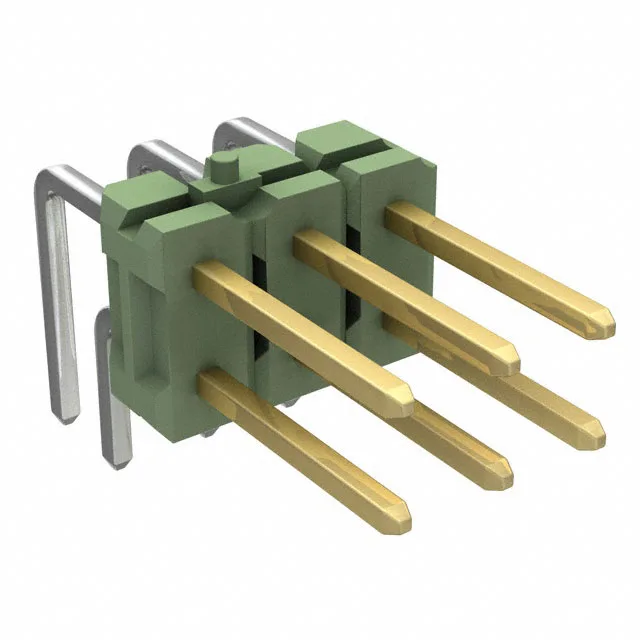

825457-3 TE Connectivity AMPMODU Mod II Header – 6 Pos

MPN825457-3
Active

TE Connectivity AMPMODU Mod II, 825457-3, unshrouded breakaway header, 6 positions, 2 rows, 0.100" (2.54mm) pitch, right-angle through-hole, gold mating finish, tin post finish, UL94 V-0 green PBT housing.

$1.2800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

825457-3 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorGreen
Insulation height0.197\" (5.00mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable

All specifications

825457-3 additional specifications
ParameterValue
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact length - mating0.264\" (6.70mm)
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

Unshrouded – no wall, so alignment is on the receptacle

This header has no shroud (unshrouded), meaning the pins are exposed above the housing base. In a board-to-board stack, the opposite connector's housing walls guide the mate; in a cable application, the plug housing does the centering. The push-pull fastening type means there is no latch – the connection is held by friction from the contact interface alone.

A close peer is the 953440-3 – also a 6-position, dual-row, right-angle header at 0.100" pitch, but it is fully shrouded (4-wall) with a friction lock and board guide, and its contacts are tin-plated rather than gold. The 825457-3 trades the mechanical alignment and latch for a gold mating interface and a lower profile. If the application needs positive locking and pin protection from the header side, the 953440-3 is the alternative; if the mating receptacle already provides those, the 825457-3 saves board space and cost.

Frequently asked questions

What is the pitch of the 825457-3?

The mating pitch is 0.100" (2.54mm), with the same 0.100" row spacing. This is the standard 2.54mm grid used by most IDC sockets and discrete-wire receptacles.

Is the 825457-3 a shrouded header?

No, it is unshrouded – the pins are exposed above the housing. There is no alignment wall or keying on the header itself; the mating receptacle provides those.

How do I get pricing and availability for the 825457-3?

Sourced to order against the BOM quantity.
