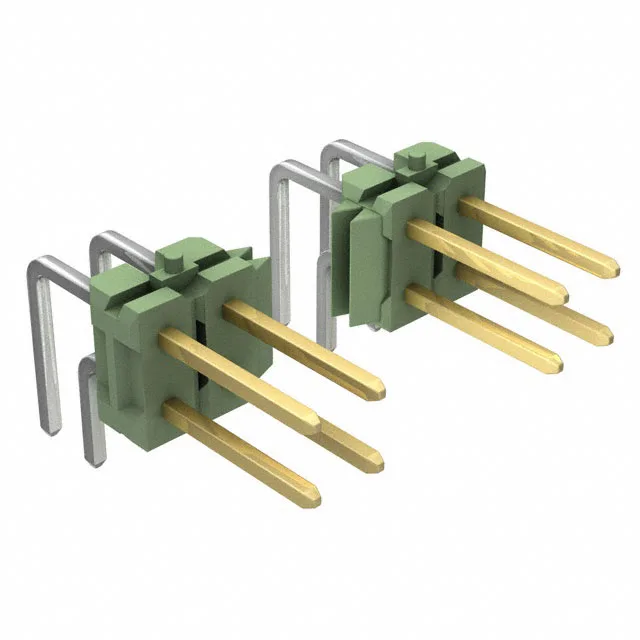

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 825457-6, 12 positions, dual row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle, solder termination.
TE AMPMODU Mod II 825457-6 Header, 12 Pos, 2.54mm
MPN825457-6
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 825457-6, 12 positions, dual row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle, solder termination.
$0.8405Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 825457-6?
RoHS/REACH status is not explicitly listed in the record; confirm with the manufacturer for current compliance documentation.
