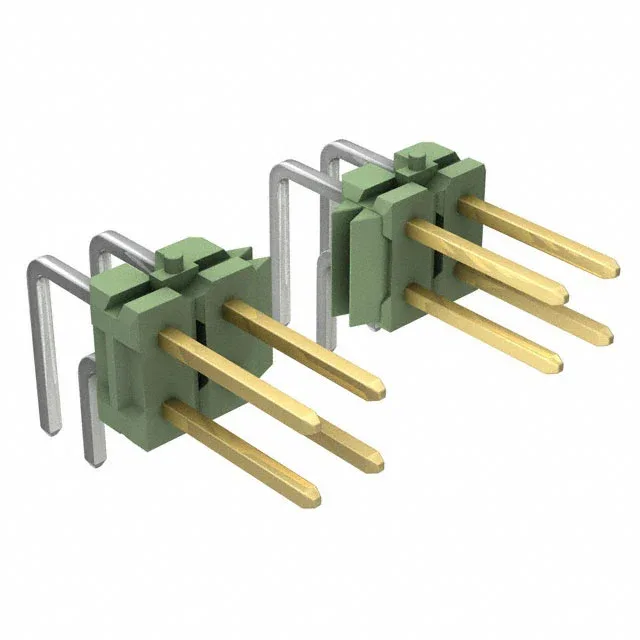

TE Connectivity AMPMODU Mod II, Header, Breakaway, 16 positions, 0.100" (2.54mm) pitch, dual row, right-angle through-hole, gold mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 825457-8: The unshrouded, push-pull fastening allows easy breakaway for prototyping or field rework.
With 0.100" pitch on both rows and a 0.100" row spacing, the 825457-8 provides a standard grid for PCB layout — matching common IDC sockets and ribbon cable connectors. The 16 positions are fully loaded, so no unused pins complicate the BOM. Compared to a single-row 16-position header, the dual-row format halves the board-edge length required, freeing space for other components.
Yes, the 825457-8 is RoHS compliant. The contact finish includes tin and gold, both RoHS-compatible materials.
The AMPMODU Mod II series includes other position counts and plating options, but a drop-in replacement would require matching the 0.100" pitch, dual-row layout, right-angle orientation, and gold mating finish.
