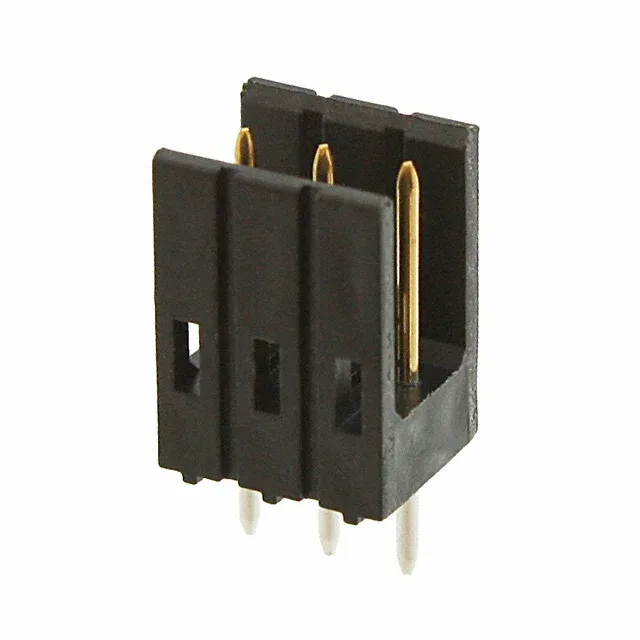

TE Connectivity AMP Connectors AMPMODU Mod II, 826467-3, 3-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, latch holder, black PCT housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 826467-3: Through-hole mounting with a 0.126" (3.20mm) post length — the solder tail protrudes through the board and is wave-soldered. The phosphor bronze contacts carry the signal path with good spring properties over the full temperature span.
The 826467-3 mates with a matching AMPMODU Mod II receptacle (not included).
Yes, the 826467-3 is ROHS3 compliant per the manufacturer's listing.
