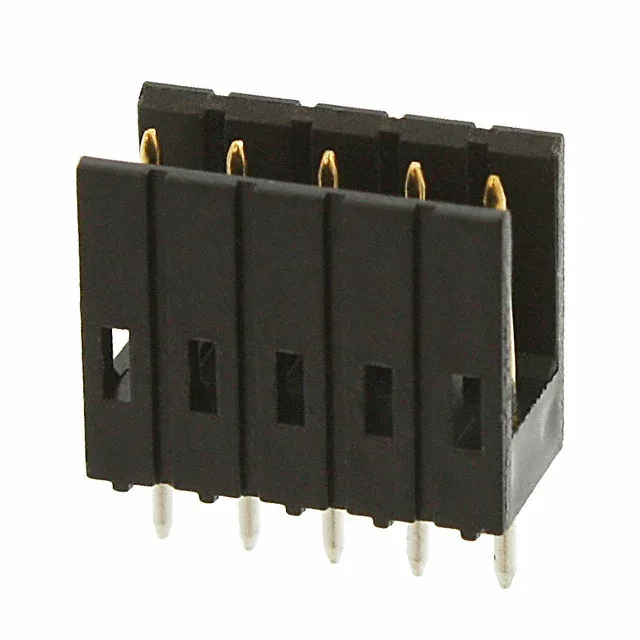

At 5 circuits on a single row with 0.100" pitch, this header matches the common 0.100" grid for PCB layout. The contact length post is 0.126" (3.20mm), which fits standard 1.6mm-thick boards with enough tail for a solid solder fillet. Compared to a 6-position shrouded header like 1394090-1, which uses a 0.112" pitch and tin mating finish, the 826467-5 offers a tighter pitch and gold-on-mating contacts for higher cycle life.
The male pin contacts are square phosphor bronze with a gold mating finish (3.90µinch) over nickel, and tin-plated posts (118.1µinch) for solderability. Termination is through-hole solder — no crimp tool needed on the header side. The mating half is a standard AMPMODU Mod II receptacle or IDC socket with 0.100" pitch and 2-wall shroud clearance.
