The solder posts are tin-plated (118.1 µinch) for reliable soldering into the PCB.
Pitch, Positions, and Board Footprint
The right-angle solder tails extend 0.126" (3.20 mm) below the board surface, which is the standard length for through-hole soldering on a 1.6 mm PCB. The single-row layout means the mating receptacle is also single-row, keeping the wire exit on one side of the connector. For a 3-circuit signal or power/sense connection, this is a space-efficient choice compared to a dual-row header of the same circuit count.
RoHS compliant per the listed compliance status, clearing the regulatory gate for EU-market equipment. Sourced through independent distribution channels. No minimum order quantity is assumed — small quantities and volume lots are both handled per RFQ.

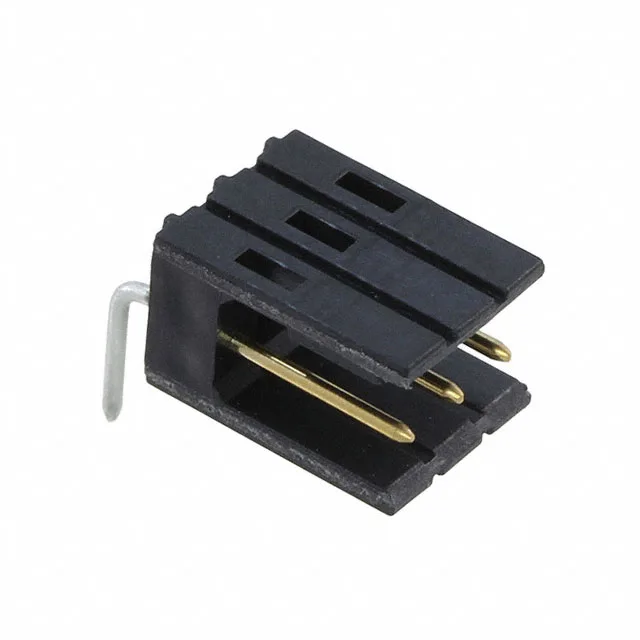

The 3-position single-row header pairs with a 3-circuit single-row receptacle.
