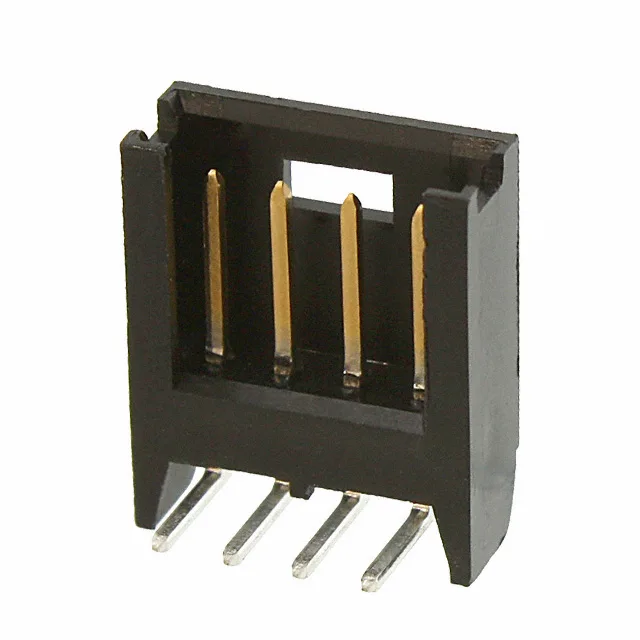

Right-angle shrouded header for board-edge routing
Gold mating finish and latch holder for field-service duty
The gold mating finish (3.90µin) over phosphor bronze suits repeated mating cycles in field-service equipment; the tin-plated post tails (118.1µin) wet reliably during wave soldering. This is a practical feature for equipment that ships as a subassembly or sees field handling where a loose connector could disconnect.
The 2-wall shroud accepts a standard unshrouded or low-profile receptacle — confirm the receptacle's mating face width clears the shroud walls. The latch holder engages with the receptacle's latch ramp; not all Mod II receptacles include a latch feature, so verify the mating half part number for latch compatibility.
