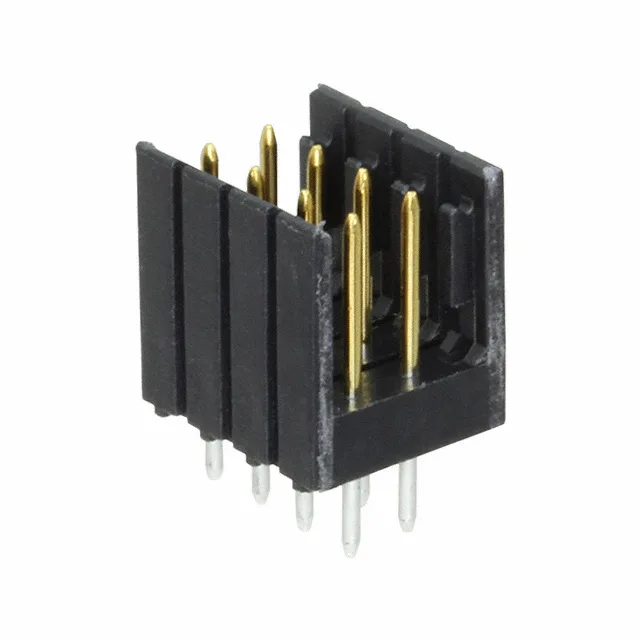

TE Connectivity AMP Connectors AMPMODU Mod II header, 826469-4, 8 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded - 2 wall, male pin, through-hole, solder termination, gold mating finish, black PCT housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 826469-4: At the standard AMPMODU Mod II rating, the 2.54mm pitch allows reliable signal-level current without exceeding the temperature rise limit of the PCT housing.
The phosphor bronze contact material offers good spring properties and conductivity, while the tin-plated solder tails (118.1 µinch / 3.00 µm) ensure reliable solder joint formation during wave or hand soldering.
ROHS3 compliant.
