0.100-inch pitch header with latch holder for vibration-prone board-to-board or cable connections
The 826469-5: The latch holder fastening type secures the mating half, reducing disconnection risk under moderate vibration.

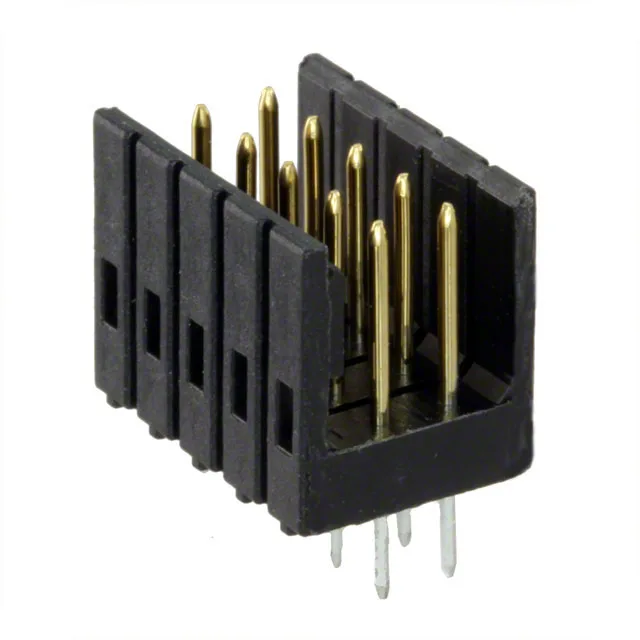

826469-5 TE Connectivity AMP Connectors Header 10POS 2.54mm
MPN826469-5
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, 10 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 2 Wall, Latch Holder, Gold Mating Finish, Black Insulation, UL94 V-0, -55°C ~ 105°C, Active
$2.3500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
Is the 826469-5 header shrouded?
Yes, the 826469-5 is a shrouded header with a 2-wall design, providing physical protection and keying to prevent mis-mating.
What is the pitch of TE Connectivity 826469-5?
The mating pitch is 0.100" (2.54mm), with the same row spacing, matching standard through-hole grid patterns.
What is the closest pin-compatible alternative to 826469-5 in this Pin Headers family?
The 826469-5 is a specific order code within the AMPMODU Mod II series; verify the BOM position count and mating half before substituting.
