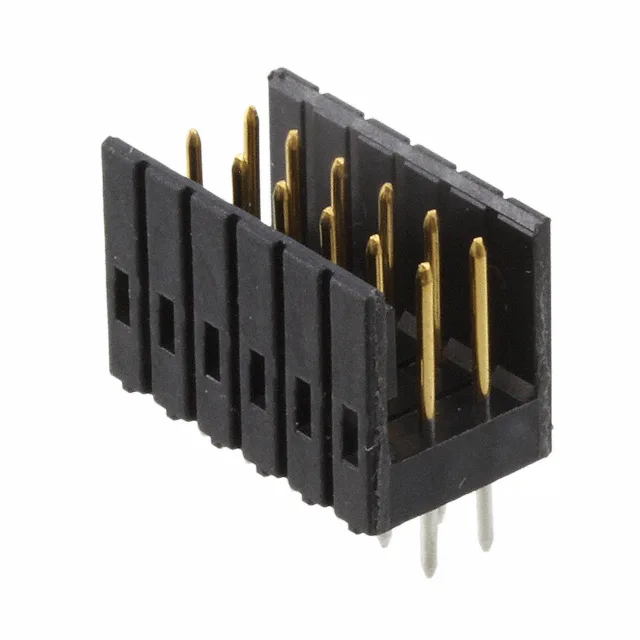

TE Connectivity AMPMODU Mod II header, order code 826469-6, 12 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through hole, solder termination, shrouded - 2 wall.
826469-6 TE AMPMODU Mod II Header, 12 Pos 2.54mm
MPN826469-6
Active
TE Connectivity AMPMODU Mod II header, order code 826469-6, 12 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through hole, solder termination, shrouded - 2 wall.
$3.5500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
Who supplies 826469-6 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors supplies the 826469-6.
What is the closest pin-compatible alternative to 826469-6 in this Pin Headers, Sockets & Housings family?
No pin-compatible alternative is on record from the manufacturer.
What is 826469-6's listed style (Board to Board or Cable) on this Pin Headers, Sockets & Housings line?
The listed style is Board to Board or Cable.
What is 826469-6's listed title (826469-6) on this Pin Headers, Sockets & Housings line?
The listed title is 826469-6.
What compliance documentation does TE Connectivity AMP Connectors provide for 826469-6 (RoHS, REACH, UL, IEC)?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
