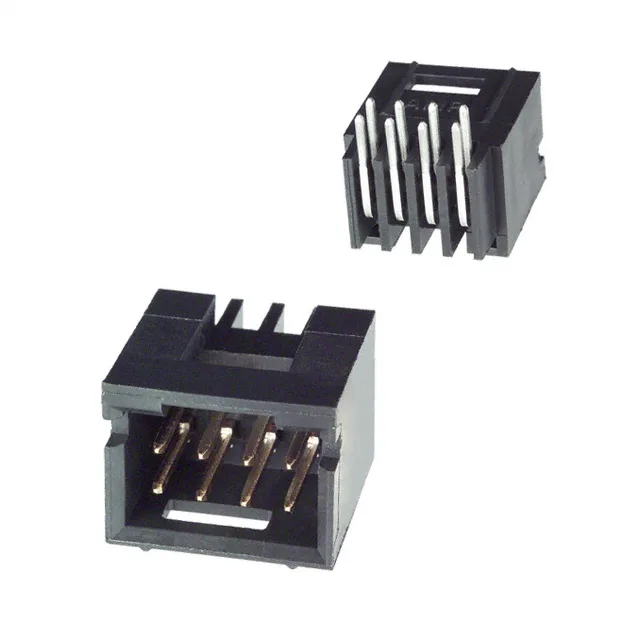

TE Connectivity AMPMODU Mod II, 8-position, 0.100" (2.54 mm) pitch, shrouded male header, right-angle through-hole, gold-plated mating contacts, latch holder, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 0.126" (3.20 mm) solder post length fits a typical 1.6 mm PCB thickness with through-hole solder fillet. Tin-plated solder tails (118.1 µinch / 3.00 µm) maintain solderability after storage.
The black housing provides visual contrast for inspection.
826470-4 is an active TE Connectivity AMPMODU Mod II header. Submit an RFQ for current pricing and availability – no stock-holding claim is made here.
