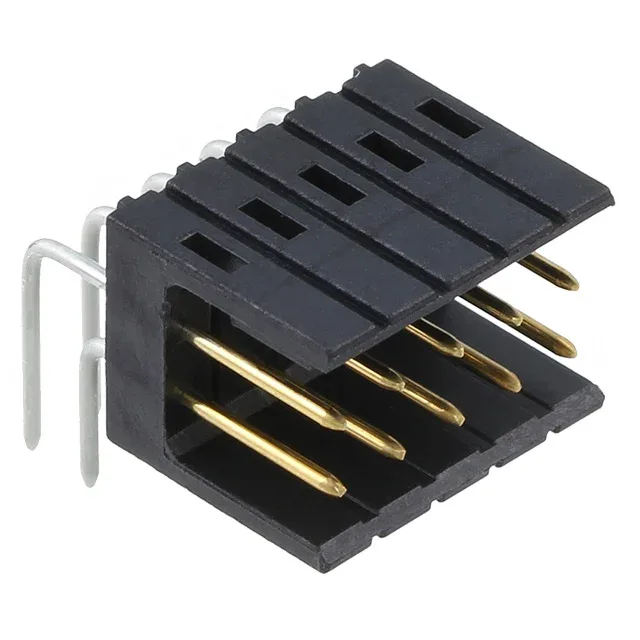

TE Connectivity AMP Connectors AMPMODU Mod II, 826470-5, shrouded header, 10 positions, 0.100-inch pitch, right-angle through-hole, gold mating finish, latch holder, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 826470-5 is a 10-position, dual-row, shrouded header from the AMPMODU Mod II series, on a 0.100-inch pitch with a right-angle through-hole termination. Gold plating on the mating surface (3.90 µin) supports repeated mating cycles; the tin-plated posts (118.1 µin) solder reliably into plated through-holes.
The 826470-5 is a 10-position, dual-row header with all positions loaded. Pin 1 is typically marked on the housing. The row spacing is 0.100-inch, matching standard 0.100-inch IDC ribbon cable patterns.
Yes, the 826470-5 is ROHS3 compliant.
Yes, the 0.100-inch pitch and dual-row layout are compatible with standard 2.54mm IDC ribbon cable, provided the mating receptacle has the correct keying and latch features.
