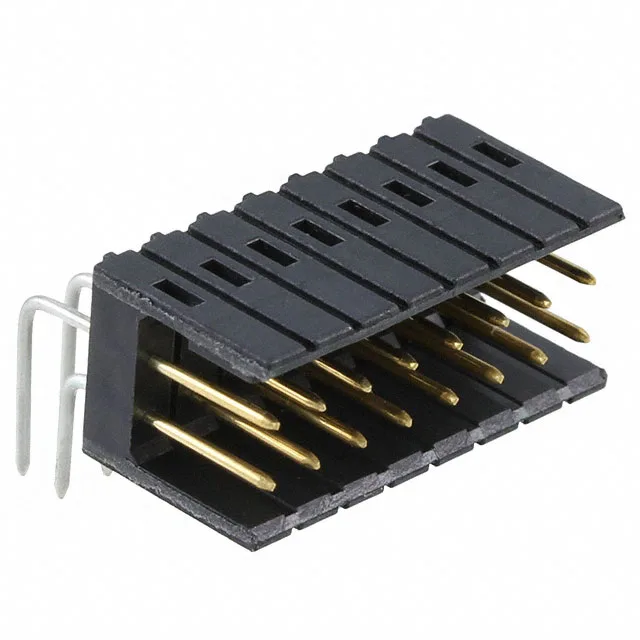

826470-8 TE Connectivity AMPMODU Mod II Header, 16 Pos

MPN826470-8
Active

TE Connectivity AMP Connectors AMPMODU Mod II header, 16 positions, 2.54mm pitch, dual-row, right-angle, shrouded with latch holder, gold-plated mating contacts, through-hole solder termination.

$3.1600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

826470-8 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.339\" (8.61mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable

All specifications

826470-8 additional specifications
ParameterValue
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

16-position right-angle header with latch retention

The 826470-8 is a 16-position, dual-row header from the AMPMODU Mod II series, on 0.100" (2.54mm) pitch.

Mating contacts are gold-plated over phosphor bronze — the gold thickness is 3.90 µinch (0.099 µm), a flash layer that provides reliable contact resistance through several hundred mating cycles in a clean indoor environment. The solder tails are tin-plated at 118.1 µinch (3.00 µm), compatible with standard lead-free wave or hand-solder processes. The post length is 0.126" (3.20mm) — confirm the PCB thickness and through-hole diameter for a proper solder fillet.

Frequently asked questions

Does 826470-8 come with a latch holder?

Yes. The fastening type is listed as latch holder — the top wall of the shroud includes a molded latch that engages the mating receptacle for positive retention.

What is the pinout and orientation of TE 826470-8?

The mounting is through-hole, right-angle — the pins exit the housing perpendicular to the PCB surface, and all 16 positions are loaded.
