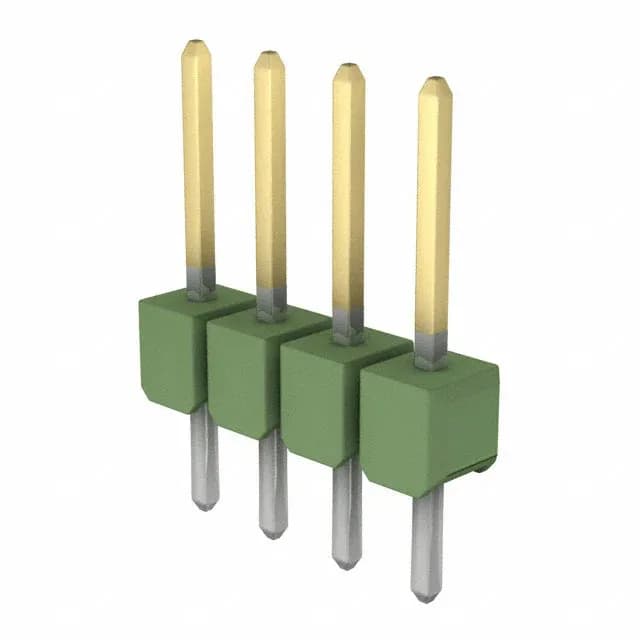

TE Connectivity AMPMODU Mod II, 826629-4, Header Breakaway, 4 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Solder, Gold Mating Finish, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Rated 5 A per contact, this header suits signal-level interconnects and low-power board-to-board or cable applications. The gold mating finish (3.90 µin) supports repeated mating cycles without corrosion, while the tin-plated posts (118.1 µin) solder reliably to the PCB.
It is a single-row, 4-position header with all positions loaded. The contact spacing is 0.100" (2.54 mm) on center.
The 826629-2 is a 2-position version of the same series, matching the 0.100" pitch, unshrouded design, and gold mating finish. For a 4-position replacement, the 826629-4 itself is the direct fit — no alternative with identical pinout is listed in the series.
