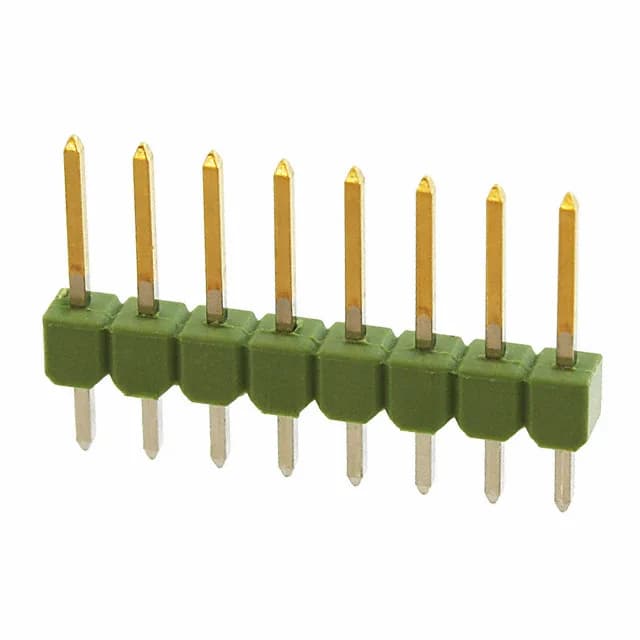

TE Connectivity AMPMODU Mod II, 8-position single-row breakaway header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, rated 5 A per circuit, UL94 V-0 green PBT housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The post tails are tin-plated (118.1 µinch) for reliable solder wetting in wave or hand-solder assembly. In a vibration environment, a mating half with a positive lock or a wire-to-board housing with a TPA is recommended to prevent back-out.
Through-hole mounting with a 0.126" (3.20 mm) post length — the solder tail protrudes through the board far enough for a reliable fillet on standard 1.6 mm PCBs.
Yes, 826629-8 is RoHS compliant per the manufacturer's listing.
